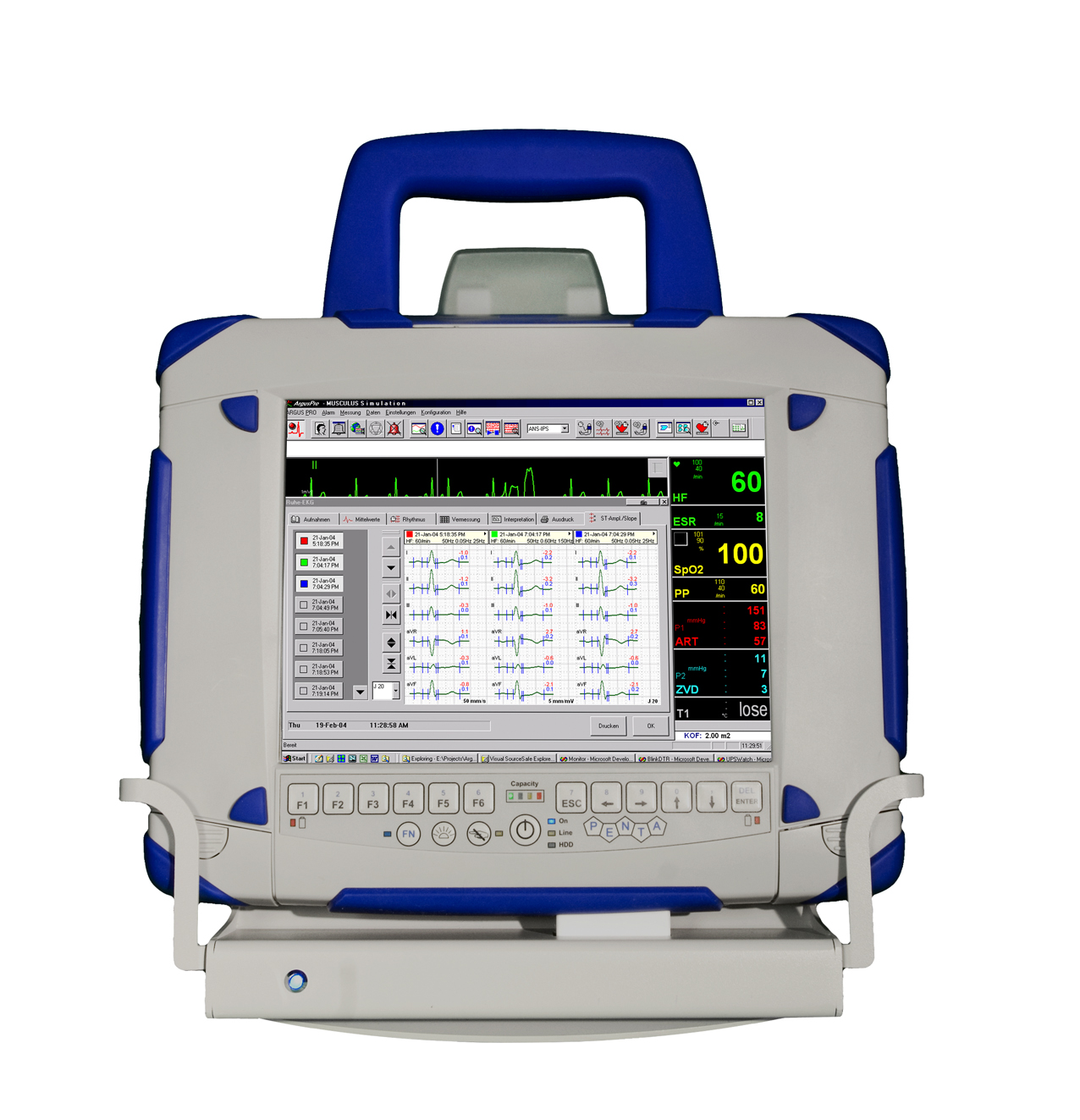

Modular high-end portable Medical-Computer with complete closed housing (IP65)
Mobile-A10
Disinfectable, fanless, maintenancefree, modular
Features
- Modular high-end portable -Medical-PC with complete closed housing (IP65)
- Durable and error-free even under critical environmental conditions, drop-tested
- Fast data input via free attestable functionkeys as well as Touchscreen
- Various input – and reader devices (Legic , RFID etc.) and Scanner are connectable
- Wireless-LAN, UMTS, GPRS integrable
- Battery-powered (Two Batteries ; hot swappable while operating)
- Passive cooling concept without ventilation-slot and without fan
- Slim housing with especially plain surface and rounded and protected edges, protected all around
- Industrial suited mounting- and fastening concept with VESA 75 Norm
- Weather resistent protction cap for Cardbus Slot
Technical Data
| Systemdata | CPU | Intel®Atom 1,6 GHz |
| Chipset | Intel® 945GSE | |
| Cache | 512kB | |
| RAM | 2 GB DDR | |
| Video memory | Up to 224 MB (DVMT) | |
| Graphic controller | Intel® GMA 950 | |
| Storage Media | Automotive HDD or industrial grade CF-Card | |
| Display resolution | 1024 x 768 | |
| Weight | 3,5 kg |
| Interfaces | Touch | analog resistive with extended transparency (>80%), surface hard coated against abrasion |
| USB | 2 x USB2.0 | |
| Power supply | Battery powerd ; 2 Batterys (hot swappable) | |
| Ethernet | W-LAN 54 MBit/s (option) | |
| RS232 | 1 x serial | |
| PC-Card | 2 x for extension cards | |
| PS/2 | Keyboard + Mouse |
| Operating Systems | Windows | Windows 7; Windows XP; Windows 2000; XP embedded; Win CE |
| LINUX | LINUX; Embedded Linux (on request; customized) |
| Environment conditions | Operating-Temperature | 0°C to + 50°C |
| Storage-Temperatur | - 20°C to + 60°C | |
| Humidity (Operating) | 10% to 90% relative humidity (not condensing) | |
| Humidity (Storage) | 5% to 95% relative humidity (not condensing) |
| Certificates: | EN 60601-1 (1990) + A1 (1993) + A2 (1995) | |
| EN 60601-1-2 (2001) + A1 (2006) | ||
| EN 55022 (2006) + A1 (2007) | ||
| EN 61000-3-2 (2000) | ||
| EN 61000-3-3 (1995) +A1 (2001) | ||
| EN 55024 (1998) +A1 (2001) +A2 (2003) | ||
| RoHS compliant |
Download
Accessories
| part-No. | Description |

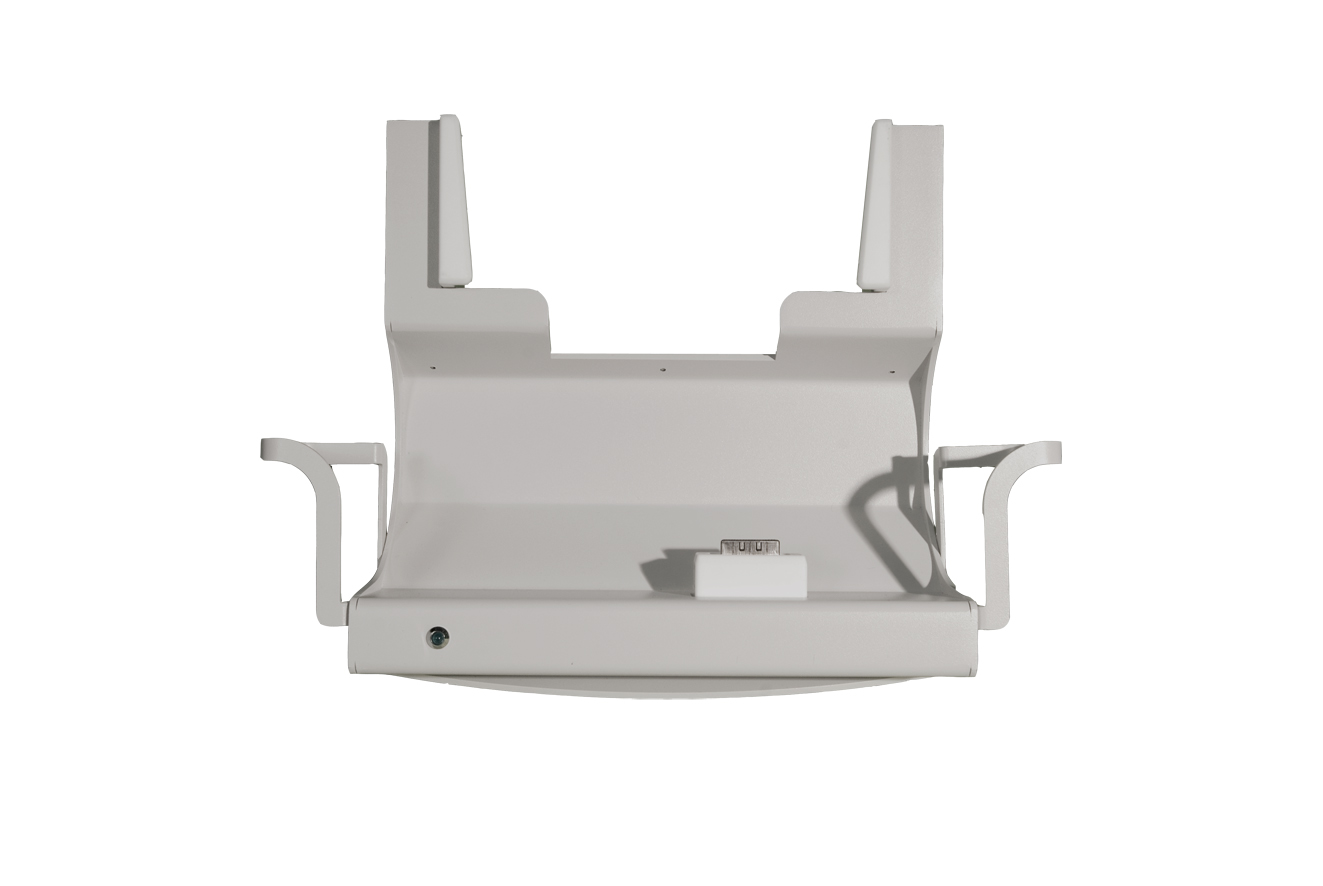

| ZUB-MH-DOC-001 | Docking station for Mobile |
| ZUB-04-EXT-K65 | desk - power supply, 19VDC / 65W (Kycon connector) |
| ZUB-04-MAC-001 | Medical desk - power supply 18VDC / 80W |
| ZUB-06-PCC-C03 | PC-Card, 54MB/s with SnapOn-Antenna |
| ZUB-MH-AKK-001 | 1 x battery for Mobile |

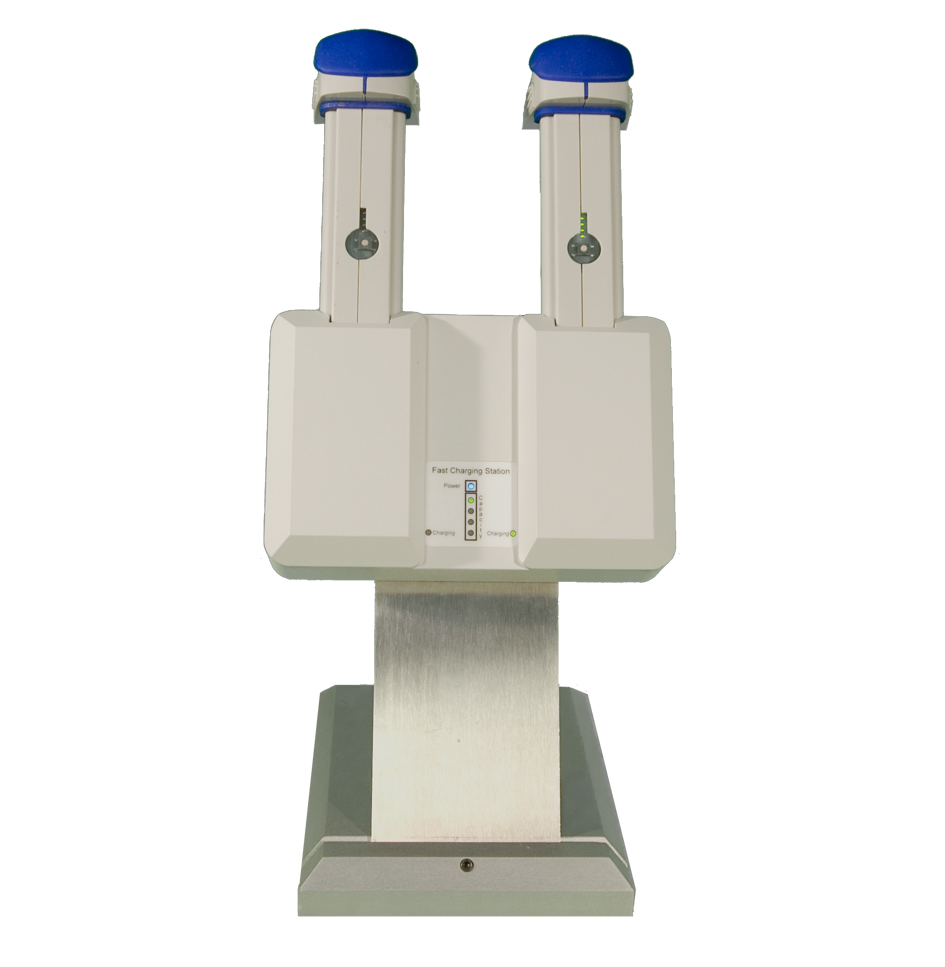

| ZUB-MH-LDS-001 | Chargingstation for battery-pack (2 Batteries) Mobile |
| other | by inquiry |

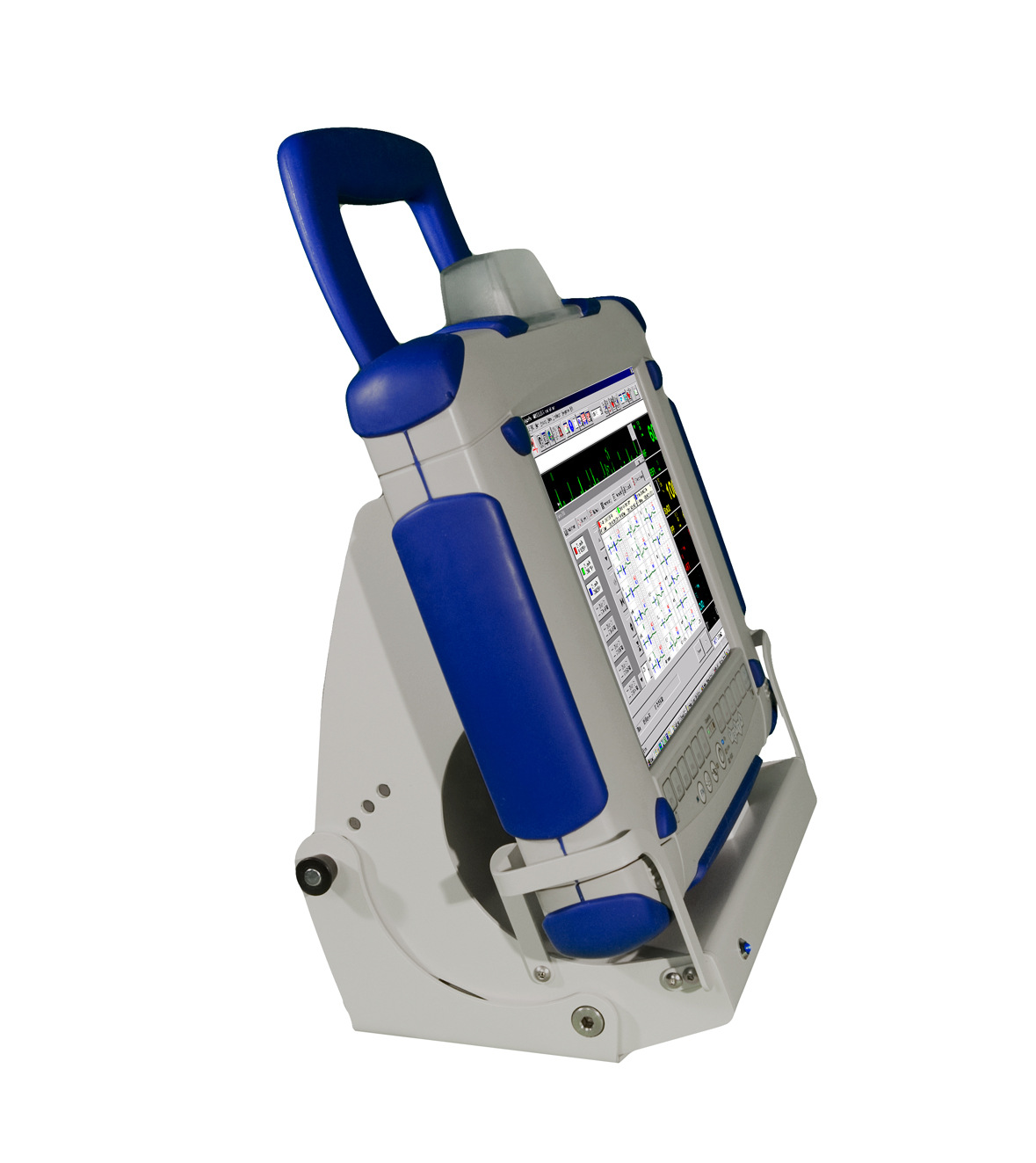

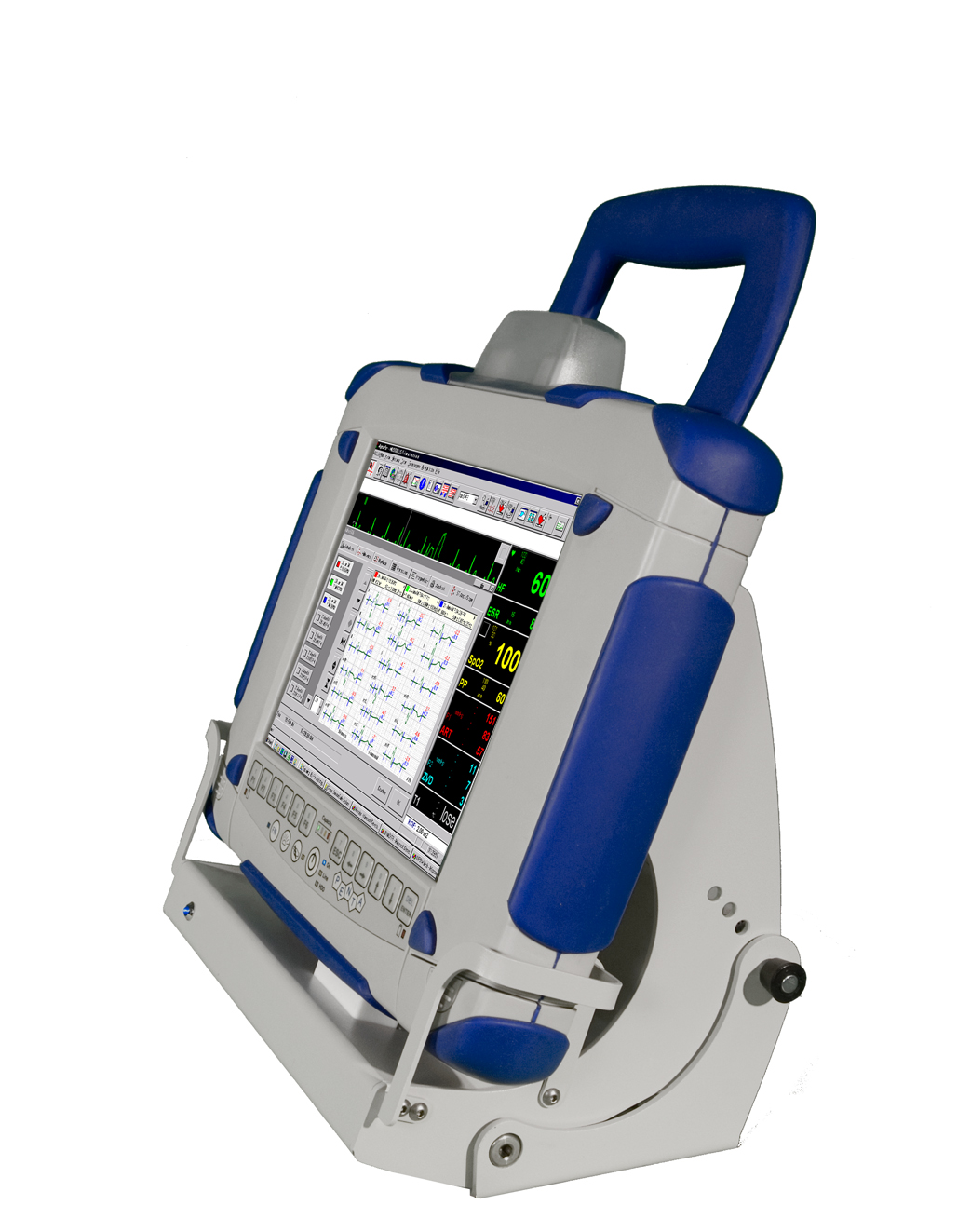

Docking- and Loadingstation for Mobile IPC
