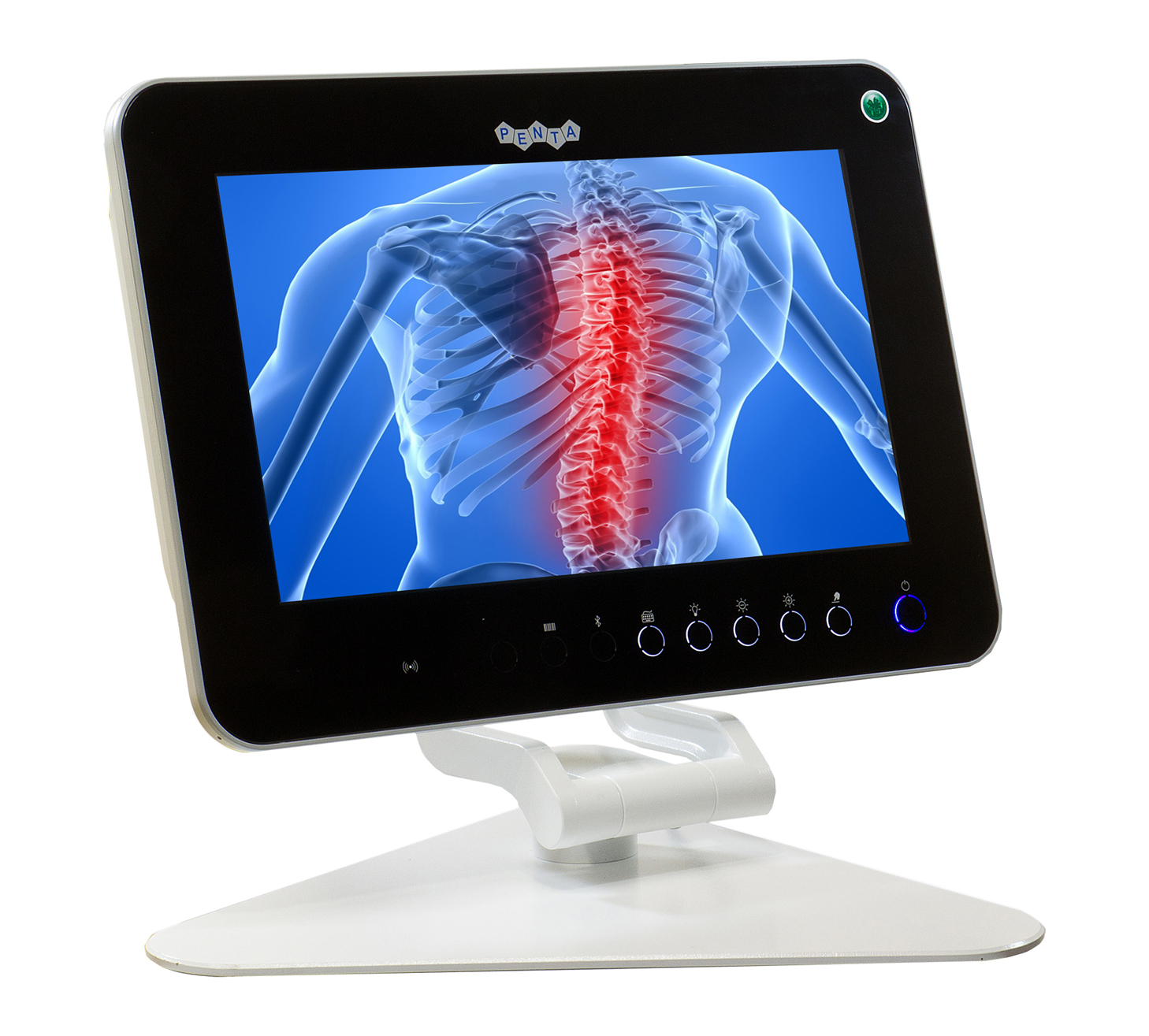

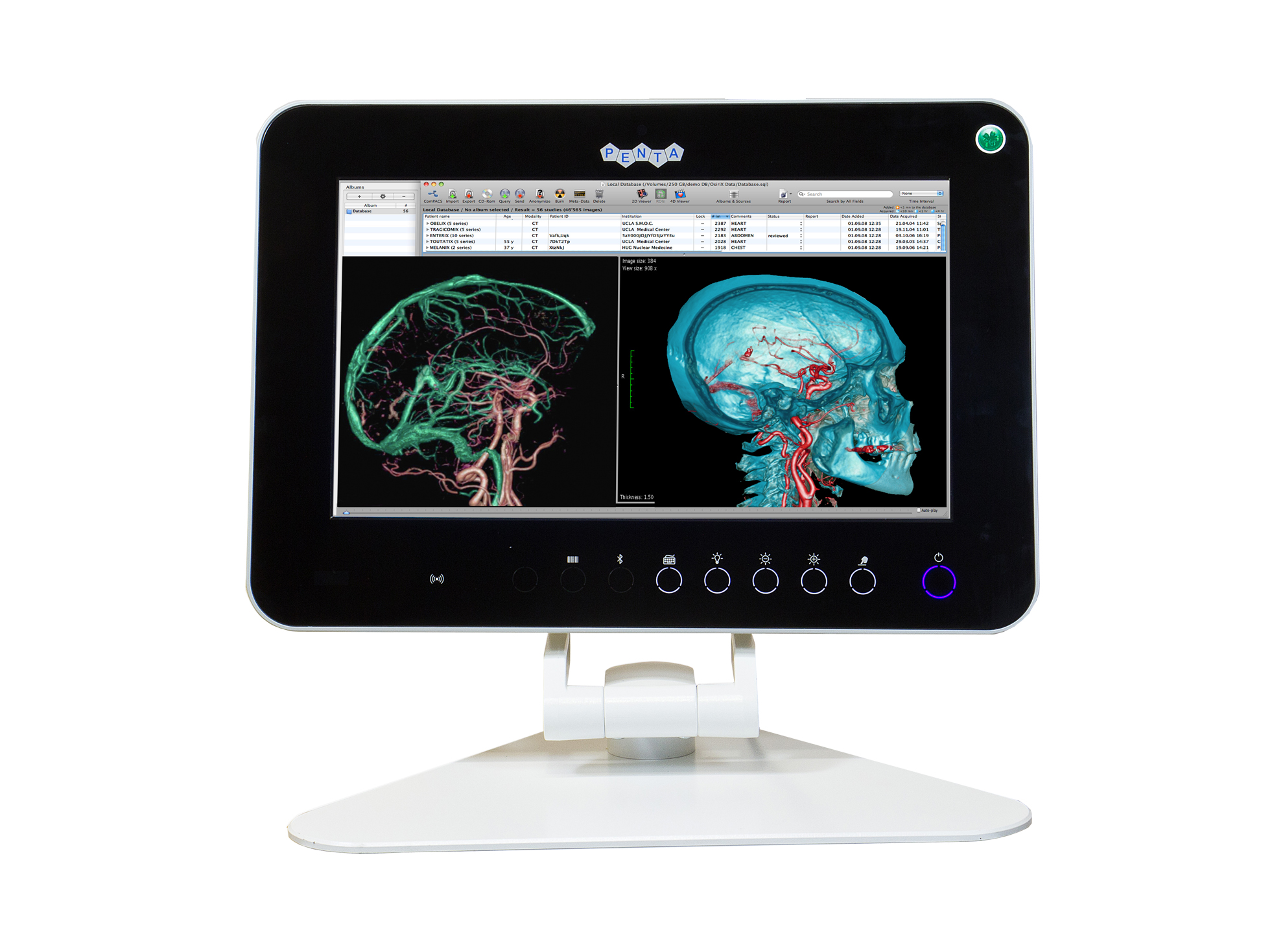

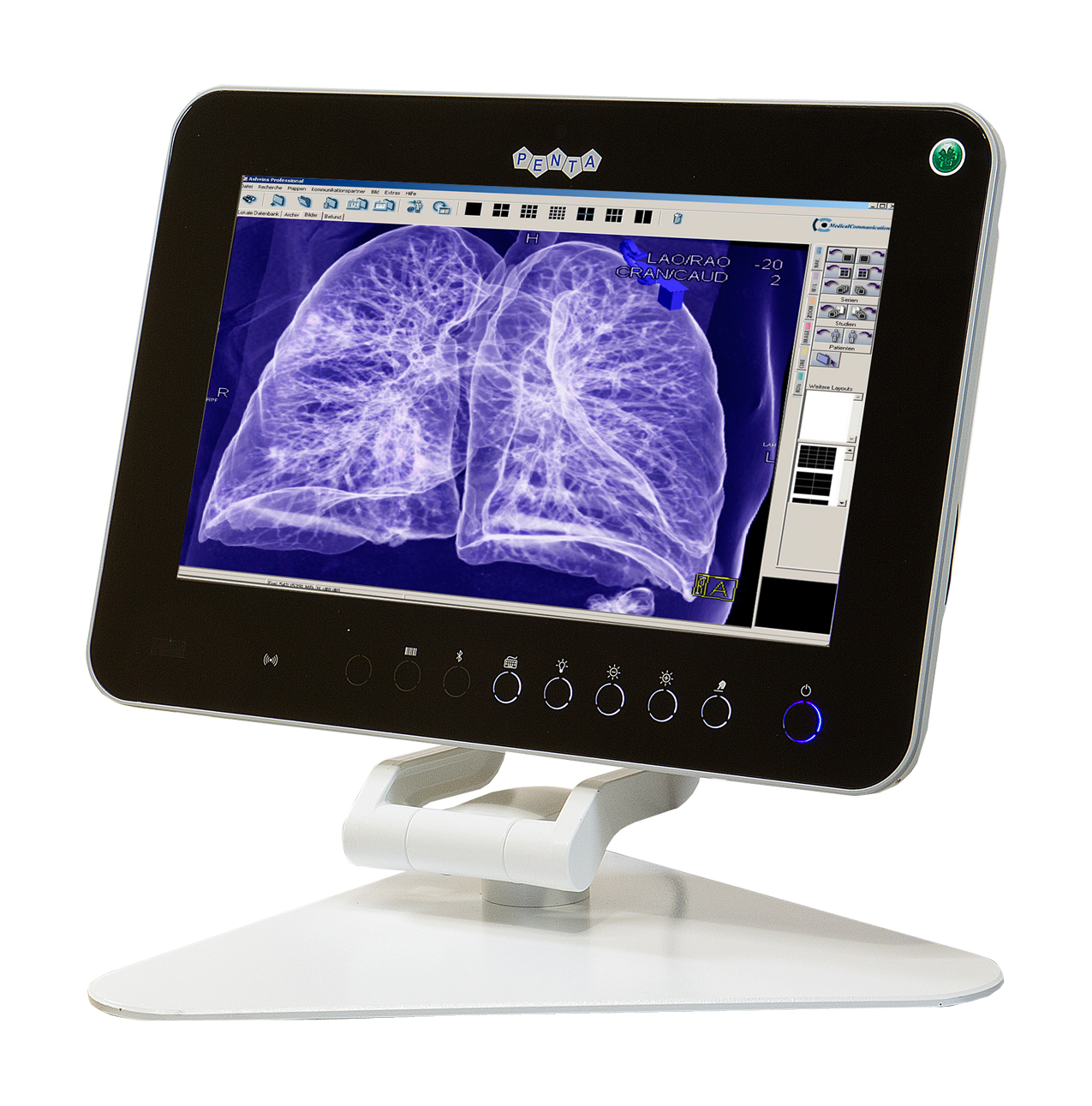

Modular high-end – Medical - Computer with Intel i5 / i7 technology and complete closed housing (IP65)
Medical-i5/i7 21
Disinfectable, fanless, maintenancefree, modular
Overview
Medical
- Medical PC
- Medical Monitors
- EndoVisHD-42
- Mobile Medical PC
- Medical Cart
- VSI Medical Software
Features
- Modular high-end – Medical - Computer with Intel i5 / i7 technology and complete closed housing (IP65)
- Disinfectable and washable , fanless , sterile , fail-safe and maintenancefree
- Durable and error-free even under critical environmental conditions
- Fast data input via functionkeys as well as optional Projected capacitive Touchscreen (PCT) with Multitouch-Function
- Various input – and reader devices and Scanner are connectable
- Optional : RFID , Barcode, Bluetooth und Wireless-LAN integrated
- Passive cooling concept without ventilation-slot and without fan
- Slim metal housing with especially plain surface, protected all around
- Medical suited mounting- and fastening concept with VESA 100 Norm
- Long term availability of components (min. 5 Years)
Technical data
| Systemdata | CPU | Intel®i5 2,4 GHz or Intel®i7 2,66 GHz |
| Chipset | Intel® QM57 | |
| Cache | 4096 kb | |
| RAM | Up to 8 GB DDR (with 64 – bit Operating System) | |
| Video memory | Up to 1024 MB (DVMT) | |
| Graphic controller | Intel® HD Graphics | |
| Storage Media | Automotive HDD (S-ATA) | |
| Display resolution 21,5" | 1920 x 1080 Full HD | |
| Weight 21,5" | 12,4 kg ; 11,7 kg (without Touch) |
| Interfaces | Touch | Projected capacitive Touch (PCT) with multitouch function |
| USB | 4 x USB2.0 | |
| Power supply | intern, fanless 150W medical power supply | |
| Ethernet | 2 x 10/100/1000BaseT | |
| RS232 | 2 x serial (OPTION: galv. isolated) | |
| Video Interface | 1 x VGA; 2 x HDMI | |
| PCIe-Card | 1x PCIe 16x/1x (OPTION) | |
| DVD-RW | 1 x intern DVD burner (OPTION) |
| Operating Systems | Windows | Windows 7; Windows XP; Windows 2000; XP embedded; Win CE |
| LINUX | LINUX; Embedded Linux (on request; customized) |
| Environment conditions | Operating-Temperature | 0°C to + 40°C |
| Storage-Temperatur | - 10°C to + 60°C | |
| Humidity (Operating) | 10% to 90% relative humidity (not condensing) | |
| Humidity (Storage) | 5% to 95% relative humidity (not condensing) |
| Certificates: | EN 60601-1 (1990) + A1 (1993) + A2 (1995) | |
| EN 60601-1-2 (2001) + A1 (2006) | ||
| EN 55022 (2006) + A1 (2007) | ||
| EN 61000-3-2 (2000) | ||
| EN 61000-3-3 (1995) +A1 (2001) | ||
| EN 55024 (1998) +A1 (2001) +A2 (2003) | ||
| RoHS compliant |
Download
Accessories
| part-No. | Description |

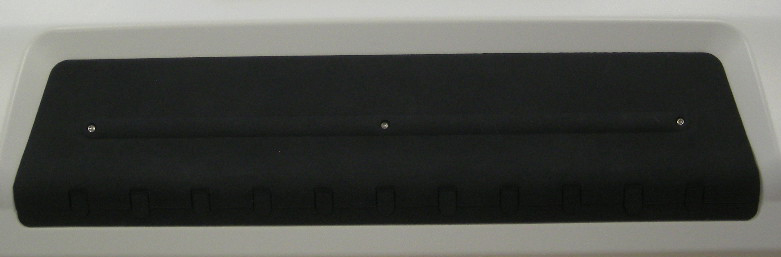

| ZUB-08-COV-013 | two part Cable cover for Medical Computer |
| ZUB-MI-GLA-002 | Glassfront for Medical Computer |
| ZUB-MI-TOU-002 | Touchscreen for Medical Computer |
| ZUB-02-MI7-04G | Upgrade from 2 to 4 GB RAM (3 GB with WIN XP) |
| ZUB-02-MI7-08G | Upgrade from 2 to 8 GB RAM (with 64bit OS), by inquiry |
| ZUB-MI-COM-001 | Galvanic isolated COM Ports |
| ZUB-06-MI7-002 | integrated Bluetooth |
| ZUB-06-MI7-001 | integrated Wireless LAN |
| ZUB-MI-SCA-001 | integrated Barcode Scanner |
| ZUB-MI-RFI-001 | integrated RFID Reader |
| ZUB-03-DVD-001 | integrated DVD-RW |
| other | by inquiry |

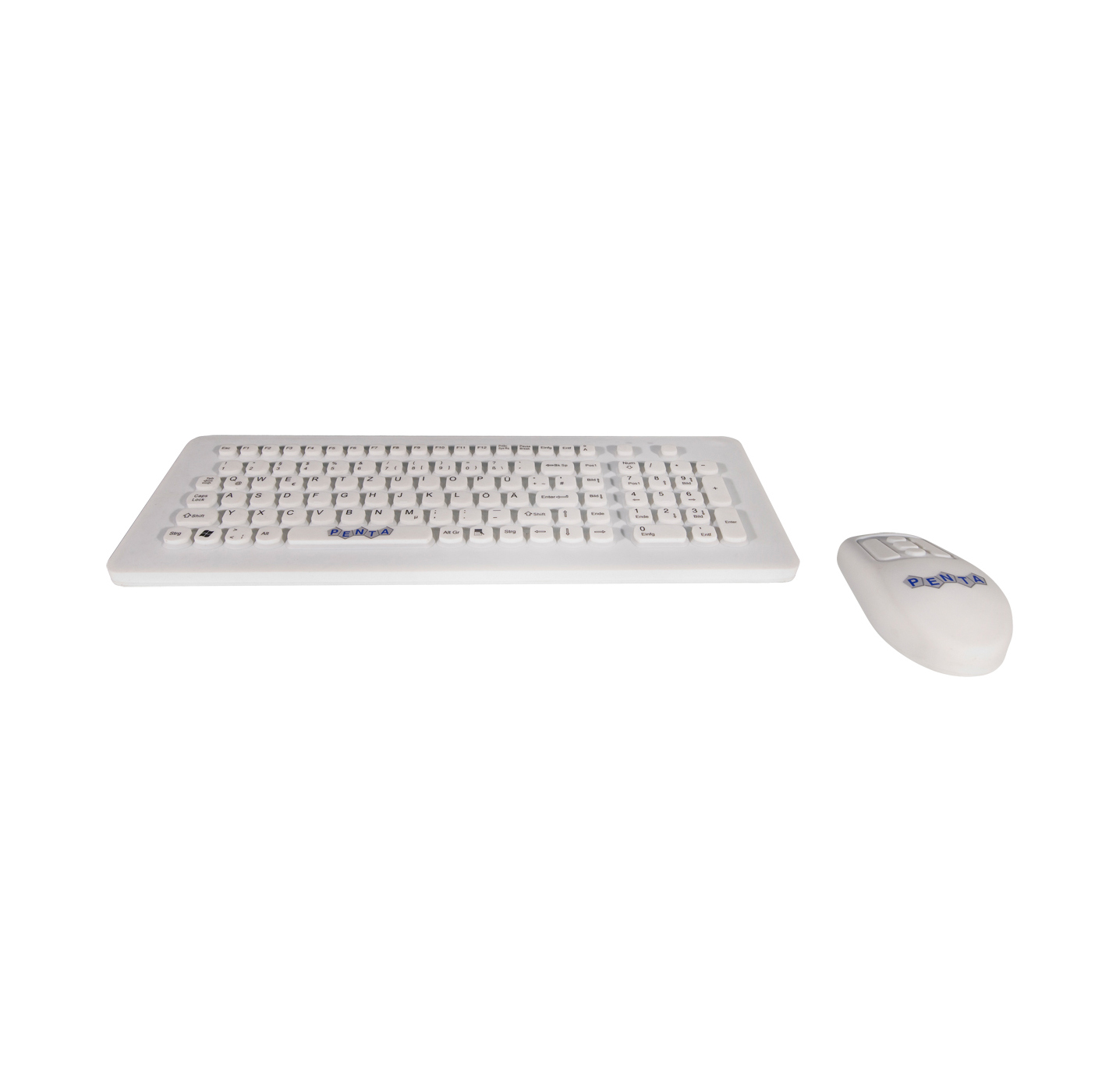

Cablecover / Medical Keyboard and Mouse for Medical Computer
