Modular high-end – Medical - Computer with complete closed housing (IP65)
Medical-C219
Disinfectable, fanless, maintenancefree, modular
Features
- Modular high-end – Medical - Computer with complete closed housing (IP65)
- Disinfectable and washable , fanless , sterile , fail-safe and maintenancefree
- Durable and error-free even under critical environmental conditions
- Fast data input via free attestable functionkeys as well as optional Touchscreen
- Various input – and reader devices (Legic , RFID etc.) and Scanner are connectable
- Free Slots for eg. : Wireless-LAN , Framegrabber , Optical Network (LWL) etc.
- Passive cooling concept without ventilation-slot and without fan
- Slim aluminium housing with especially plain surface, protected all around
- Medical suited mounting- and fastening concept with VESA 100 Norm
- Long term availability of components (min. 5 Years)
Technical data
| Systemdata | CPU | Intel®Core2Duo 1,2 GHz or 1,86 GHz |
| Chipset | Intel® 45 GS | |
| Cache | 3072kB or 6144kB | |
| RAM | Up to 8 GB DDR (with 64 – bit Operating System) | |
| Video memory | Up to 1024 MB (DVMT) | |
| Graphic controller | Intel® 45 GS | |
| Storage Media | Automotive HDD (S-ATA) or industrial grade CF-Card | |
| Display resolution | 1280 x 1024 | |
| Weight | 12,46 kg |
| Interfaces | Touch | analog resistive with extended transparency (>80%), surface hard coated against abrasion |
| USB | 6 x USB2.0 + 1 x Service USB2.0 | |
| Power supply | intern, fanless 130W medical power supply | |
| Ethernet | 1x 10/100BaseT DC-isolated ; 1x 10/100/1000BaseT | |
| RS232 | 2 x serial (galv. isolated) | |
| Video Interface | 1x VGA | |
| PCIe-Card | 1x PCIe 16/1x PCIe 1x | |
| Firewire IEEE | 2x 400 (350mA@+12V) |
| Operating Systems | Windows | Windows 7; Windows XP; Windows 2000; XP embedded; Win CE |
| LINUX | LINUX; Embedded Linux (on request; customized) |
| Environment conditions | Operating-Temperature | 0°C to + 50°C |
| Storage-Temperatur | - 10°C to + 60°C | |
| Humidity (Operating) | 10% to 90% relative humidity (not condensing) | |
| Humidity (Storage) | 5% to 95% relative humidity (not condensing) |
| Certificates: | EN 60601-1 (1990) + A1 (1993) + A2 (1995) | |
| EN 60601-1-2 (2001) + A1 (2006) | ||
| EN 55022 (2006) + A1 (2007) | ||
| EN 61000-3-2 (2000) | ||
| EN 61000-3-3 (1995) +A1 (2001) | ||
| EN 55024 (1998) +A1 (2001) +A2 (2003) | ||
| RoHS compliant |
Download
Accessories
| part-No. | Description |

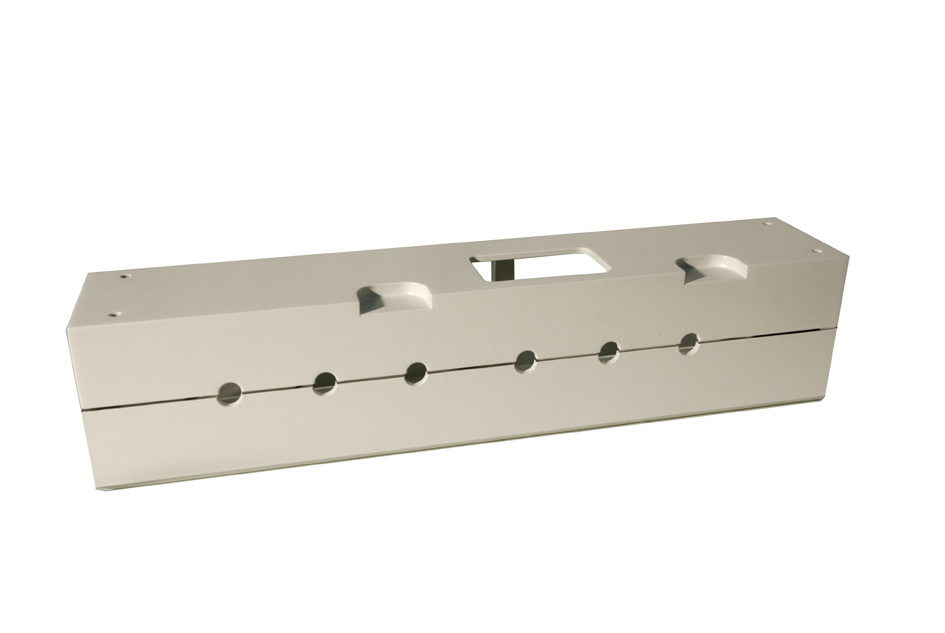

| ZUB-08-COV-012 | two part Cable cover for Medical Express Computer |
| ZUB-MX-GLA-002 | Glassfront for Medical Express |
| ZUB-MX-TOU-002 | Touchscreen for Medical Express |
| ZUB-02-MEP-04G | Upgrade from 2 to 4 GB RAM (3 GB with WIN XP) |
| ZUB-02-MEP-08G | Upgrade from 2 to 8 GB RAM (with 64bit OS), by inquiry |
| other | by inquiry |

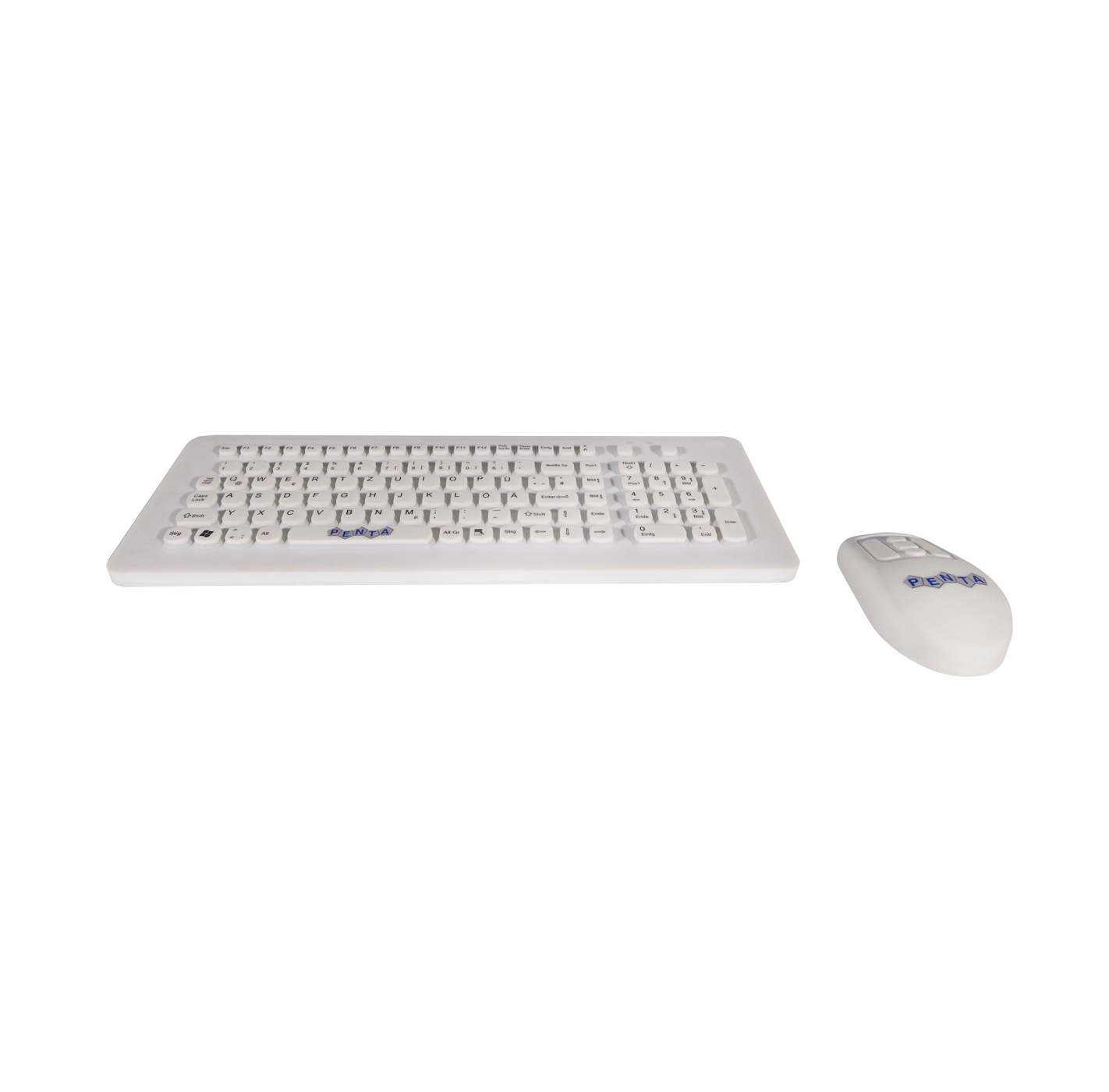

Cablecover / Medical Keyboard and Mouse for Medical Computer
