The Medicarts are driveable, modular high-end – Medical - devices

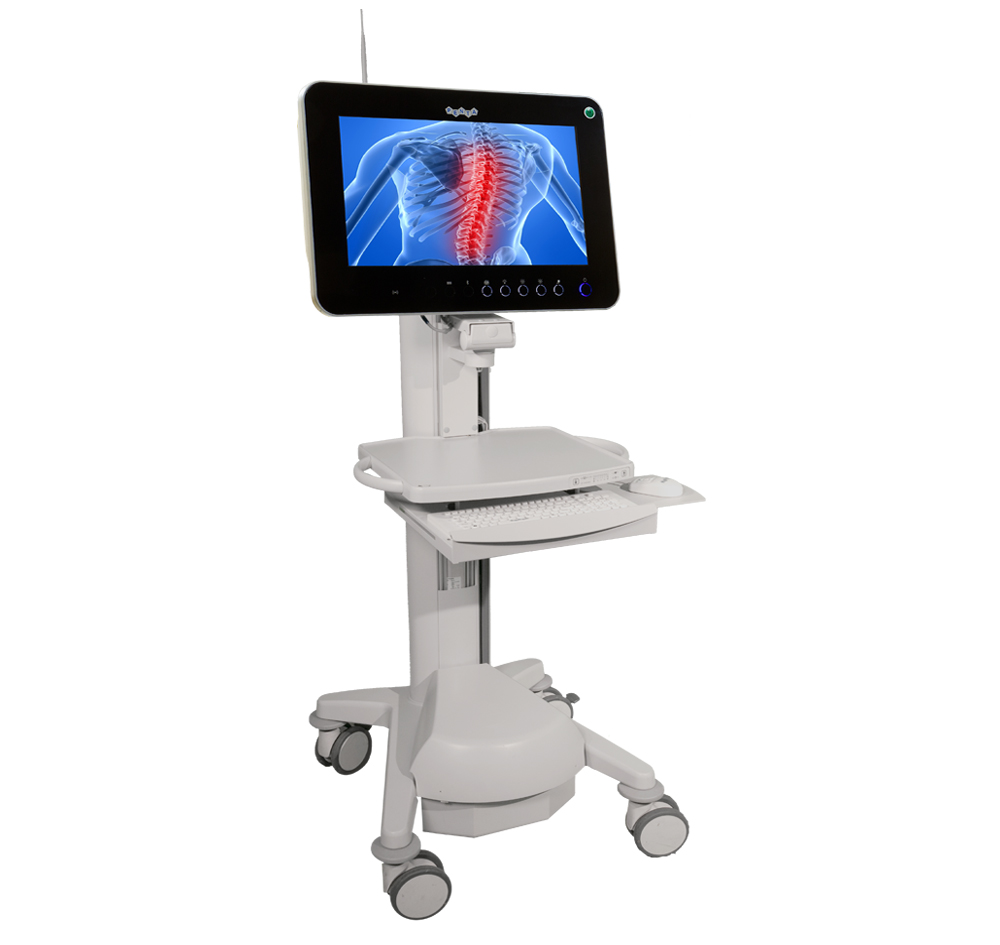

MediCart
Disinfactable, mobile, maintenancefree, modular
Features
- Modern hospital- and treatment methods require maximum performance to compact, mobile medical devices.
- The MediCart has a high measure with safety, stability as well as hygiene as a new generation of mobile devices.
- It is equipped with an optional integrated high-end-PC of the latest generation, an optional operating panel with an electrical lifting system as well as an otional integrated battery with a running time of 8 hours.
- The MediCart can be used for single monitor operation as well as for dual-head applications with two monitors.
- As an option in combination with our Medical PC DVD-RW, WLAN, cameramodules and speakers are avaliable.
Technical Data
| Systemdata | MediCart VLE | Operating Panel |
| VLE | 4 x 12-24V connectors for 4 devices | |
| USB | 2 x USB 2.0 | |
| Lifting (Option) | Electrical lifting system with up-/down Keys | |
| OLED | Info-LEDs for battery-status and charging | |
| Battery (Option) | 12V / 55 Ah for 8 h operating time (e.g. with Medical PC) | |
| Mounting | VESA 75/100 for e.g. Medical PC | |
| Options with Medical PC : |
| Systemdata | PC | Medical i5 / i7 |
| CPU | Intel® i7 @ 2,66 GHz or i5 @ 2,4 GHz | |
| RAM | Up to 8 GB DDR (with 64 – bit Operating System) | |
| Video memory | Up to 1024 MB (DVMT) | |
| Graphic controller | Intel® HD Graphics | |
| Storage Media | Automotive HDD (S-ATA) or industrial grade CF-Card | |
| Display resolution | up to 1920 x 1080 FullHD | |
| Weight | 11,7 kg |
| Interfaces | Touch | Projected capacitive Touch (PCT) with multitouch function |
| USB | 4 x USB2.0 + service USB (Side, covered) | |
| Power supply | intern, fanless 150W medical power supply | |
| Ethernet | 2 x 10/100/1000BaseT | |
| RS232 | 2 x serial (OPTION: galv. isolated) | |
| Video Interface | 1 x VGA; 2 x HDMI | |
| PCIe-Card | 1x PCIe 16x/1x (OPTION) | |
| DVD-RW | 1 x intern DVD burner (OPTION) |
| Operating Systems | Windows | Windows XP; XP embedded |
| LINUX | LINUX; Embedded Linux (on request; customized) |
| Environment conditions | Operating-Temperature | 0°C to + 50°C |
| Storage-Temperatur | - 10°C to + 60°C | |
| Humidity (Operating) | 10% to 90% relative humidity (not condensing) | |
| Humidity (Storage) | 5% to 95% relative humidity (not condensing) |
| Certificates: | EN 60601-1 (1990) + A1 (1993) + A2 (1995) | |
| EN 60601-1-2 (2001) + A1 (2006) | ||
| RoHS compliant |
Download
Accessories
| part-No. | Description |
| MIT-01-000-000 | Medical Cart without Battery and without elec. Lift, for e.g. Medical PC , Medical Monitor |
| MIT-01-BAT-000 | Medical Cart with Battery but without elec. Lift, for e.g. Medical PC , Medical Monitor |
| MIT-01-BAT-HUB | Medical Cart with Battery and with elec. Lift, for e.g. Medical PC , Medical Monitor |
| Options : | |
| MEP-19-180-02G | Medical-C19 |
| MEX-xx-CDx-02G | Medical-M17 / 19 / 21 |
