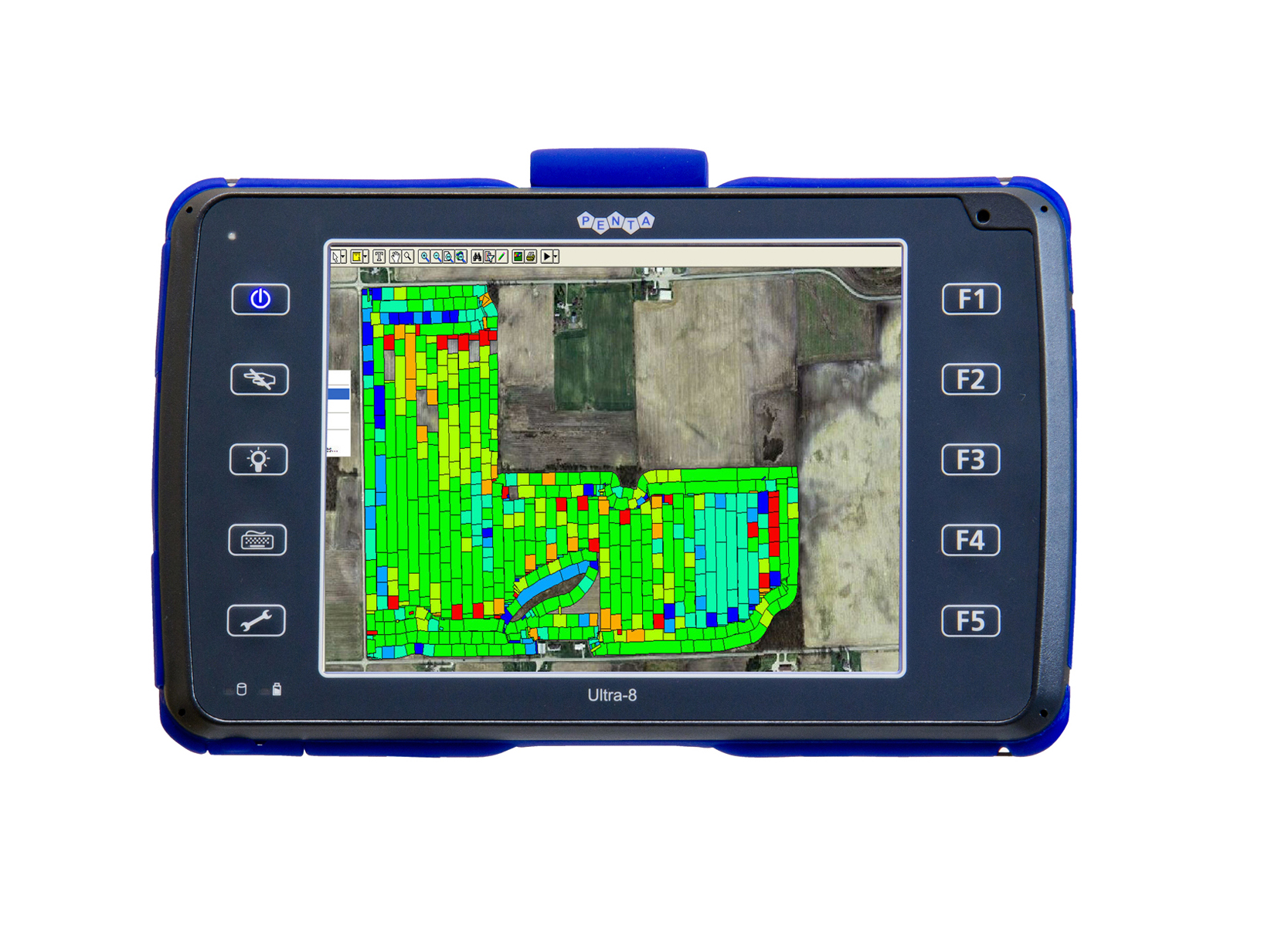

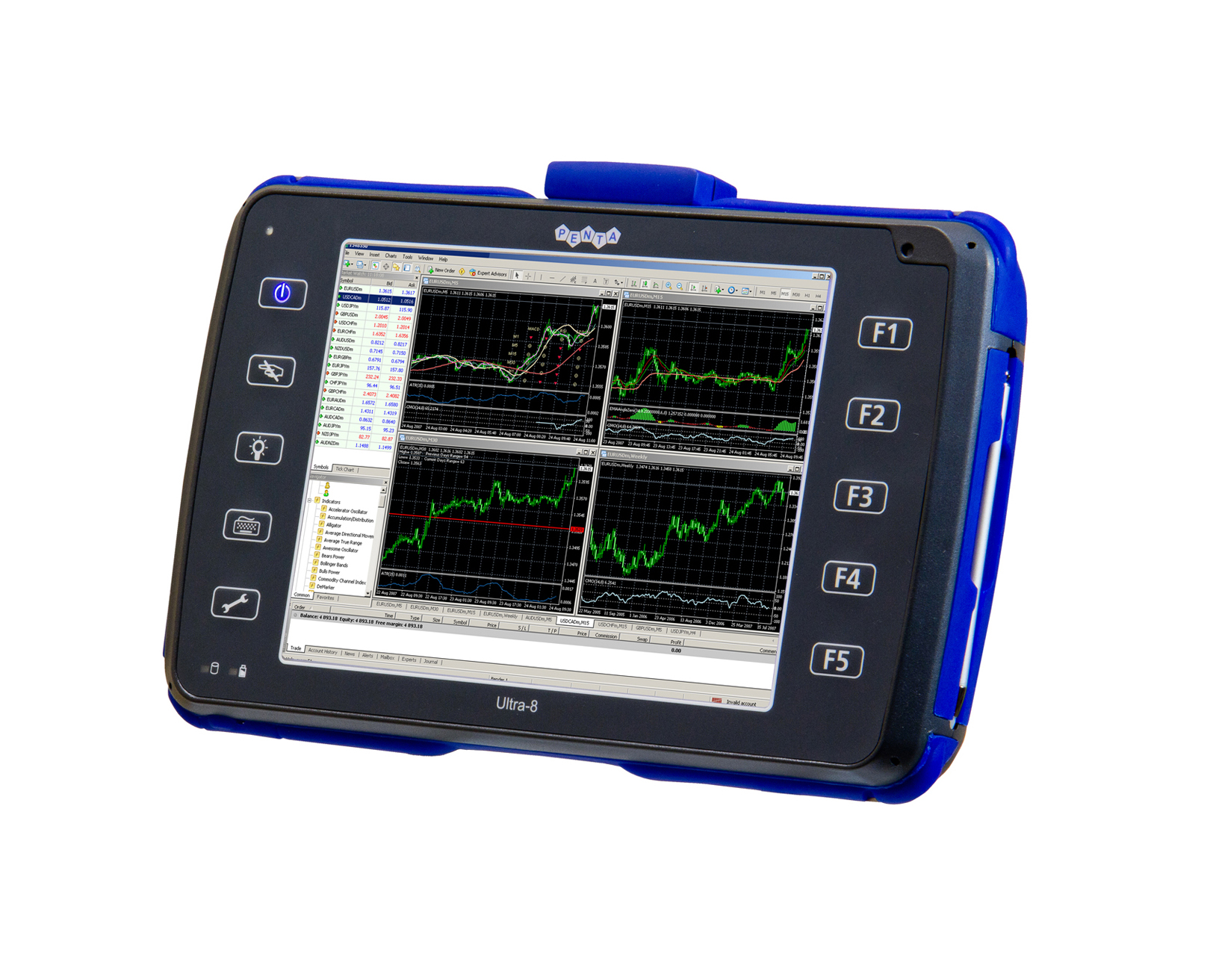

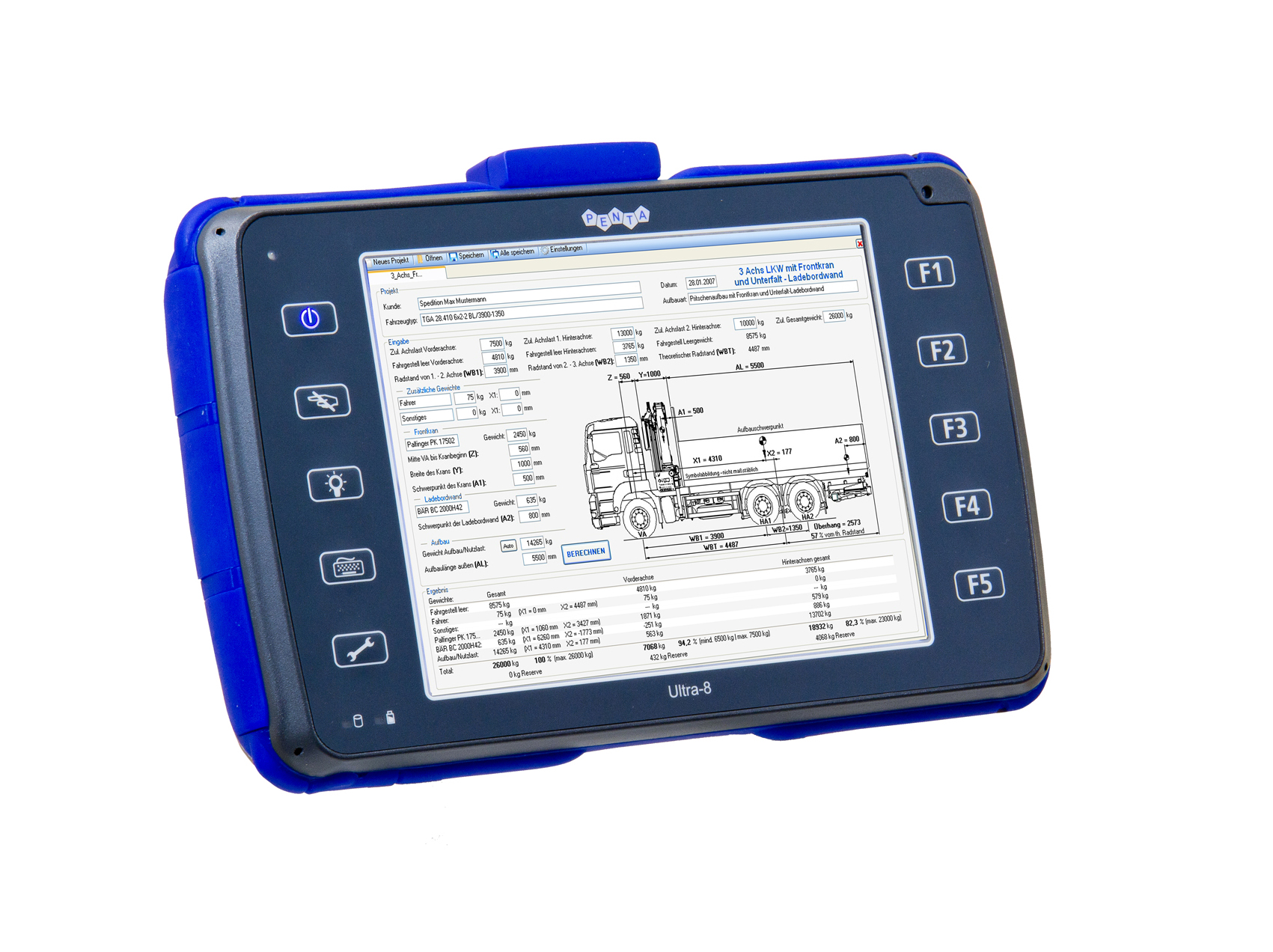

Modular high-end portable Tablet-Computer with complete closed housing (IP65). New Standards in the mobile Computing technology
Ultra-A8
Ultralight, energy efficient, robust, maintenancefree
Overview
Industry & Logistics
- Industrial PC
- Pharma & Food PC
- Mobile PC
- Logistic PC
- Tablet PC
- Scanner and W-LAN
Features
- Portable, light and fully-fledged Tablet - PC with complete closed housing (IP65)
- Washable, fan less, fail-safe and maintenance-free
- Durable and error-free even under critical environmental conditions
- Daylight suitable, super bright and highly intense Display
- Anti reflection display coating and automatic brightness adjustment guarantees a perfect reading precision
- Fast data input via free adjustable function keys as well as touch screen
- Integrated Wireless-LAN, Bluetooth, USB, Ethernet and also a cameramodule (option)
- USB client connector for easy connection to other PCs
- Various input – and reader devices (Legic, RFID etc.) and Scanner are connectable
- Passive cooling concept without ventilation-slit and without fan
- Slim housing with especially plain surface, protected all around
- Easy and comfortable to carry
- Industrial suited mounting- and fastening concept for the part mobile use in vehicles
Technical Data
| Systemdata | CPU | Intel®Atom 1,6 GHz |
| Chipset | SCH US 15W | |
| Cache | 512kB | |
| RAM | 1 GB DDR | |
| Video memory | Up to 224 MB (DVMT) | |
| Graphic controller | Intel® GMA 500 | |
| Storage Media | industrial grade CF-Card | |
| Display resolution | 800 x 600 | |
| Weight | 1,3 kg |
| Interfaces | Touch | analog resistive with extended transparency (>80%), surface hard coated against abrasion |
| USB | 2x USB2.0, 1x USB client (easy connection to other PCs) | |
| Power supply | Battery with up to 5 h power on, DC input (19 V) | |
| Ethernet | W-LAN 54 MBit/s and RJ45 Gigabit Ethernet | |
| Mini PCIexpress slot | PCIexpress x1 and USB2.0 | |
| Bluetooth | V2.0 + EDR class 2 | |
| HDMI | with DVI signals for external monitor or beamer |
| Operating Systems | Windows | Windows 7; Windows XP; XP embedded; Win CE |
| LINUX | LINUX; Embedded Linux (on request; customized) |
| Environment conditions | Operating-Temperature | 0°C to + 50°C |
| Storage-Temperatur | - 20°C to + 60°C | |
| Humidity (Operating) | 10% to 90% relative humidity (not condensing) | |
| Humidity (Storage) | 5% to 95% relative humidity (not condensing) |
| Certificates: CE Certificate of Conformity | Directive93/42/EEC | RoHS compliant |
| ISO 9001 (2008); ISO 13485 (2007) | ||
| Environment | Vibration : IEC 68-2-6 ; | |
| Shock : IEC 68-2-27 ; Cold/Heat : IEC 68-2-1/2 ; | ||
| Humidity : IEC 68-2-3 ; Change of Temperature : IEC 68-2-14 | ||
| EMC | Interference resistance against external Field : EN 50082-2 (IN 55024) | |
| Interference radiation : EN 50081-1 (IN 55022) | ||
| Interference resistance against circuit-bound Interference : DIN 40839 T1 + T3 | ||
| WEEE-Reg.-Nr. DE 70246803 |
Download
Accessories
| part-No. | Description |
| ZUB-UL-GPS-001 | GPS Navigaion |
| ZUB-UL-UMT-001 | UMTS Telefon Option |
| ZUB-UL-SCA-001 | Scanner Module |
| ZUB-UL-BAT-001 | 1 x battery |
| ZUB-UL-CHA-001 | Chargingstation for battery |
| ZUB-UL-FIX-001 | Vehicle Mount |
| ZUB-UL-DST-001 | Dockingstation for Ultra-8 |
| other | by inquiry |
