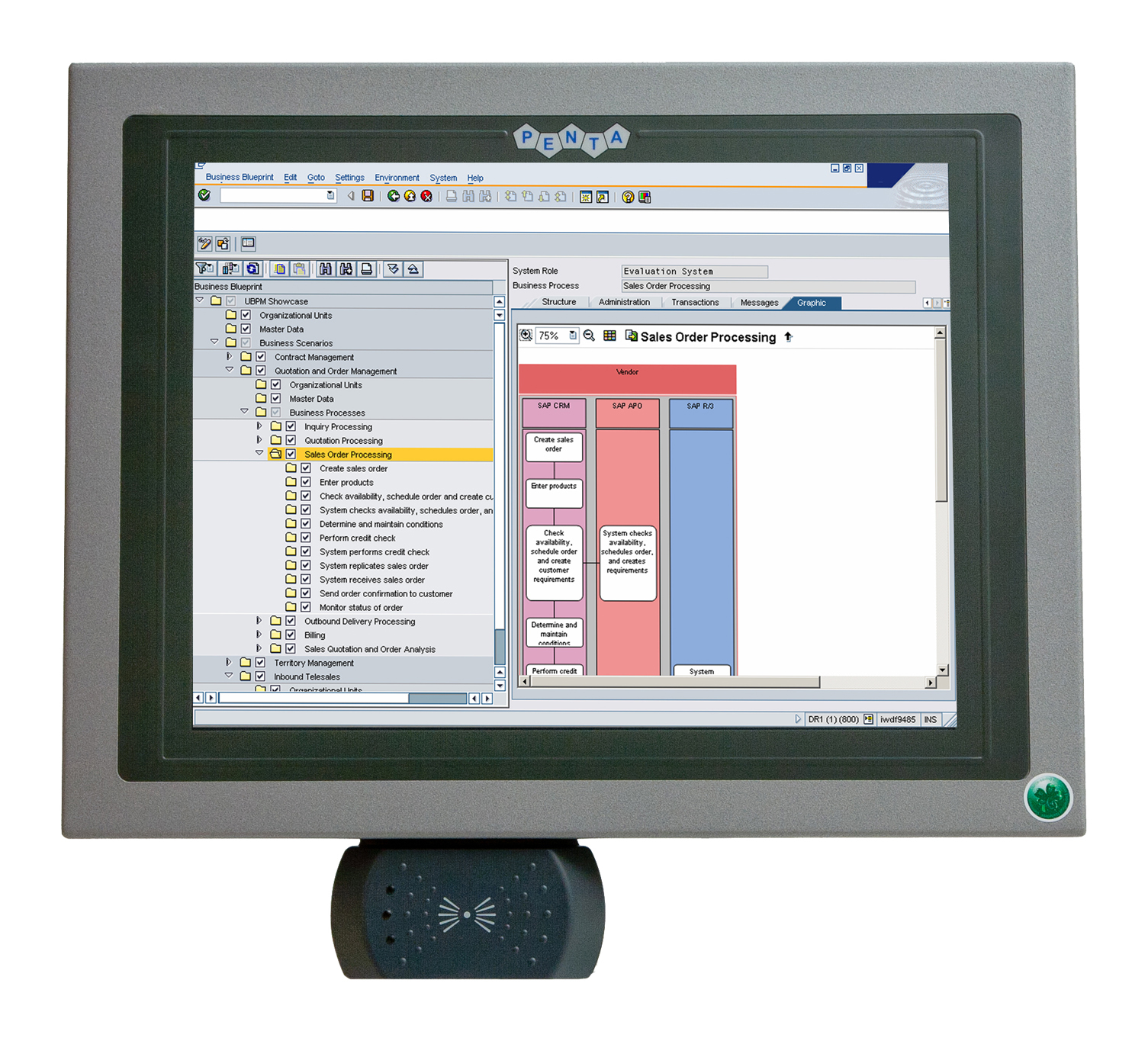

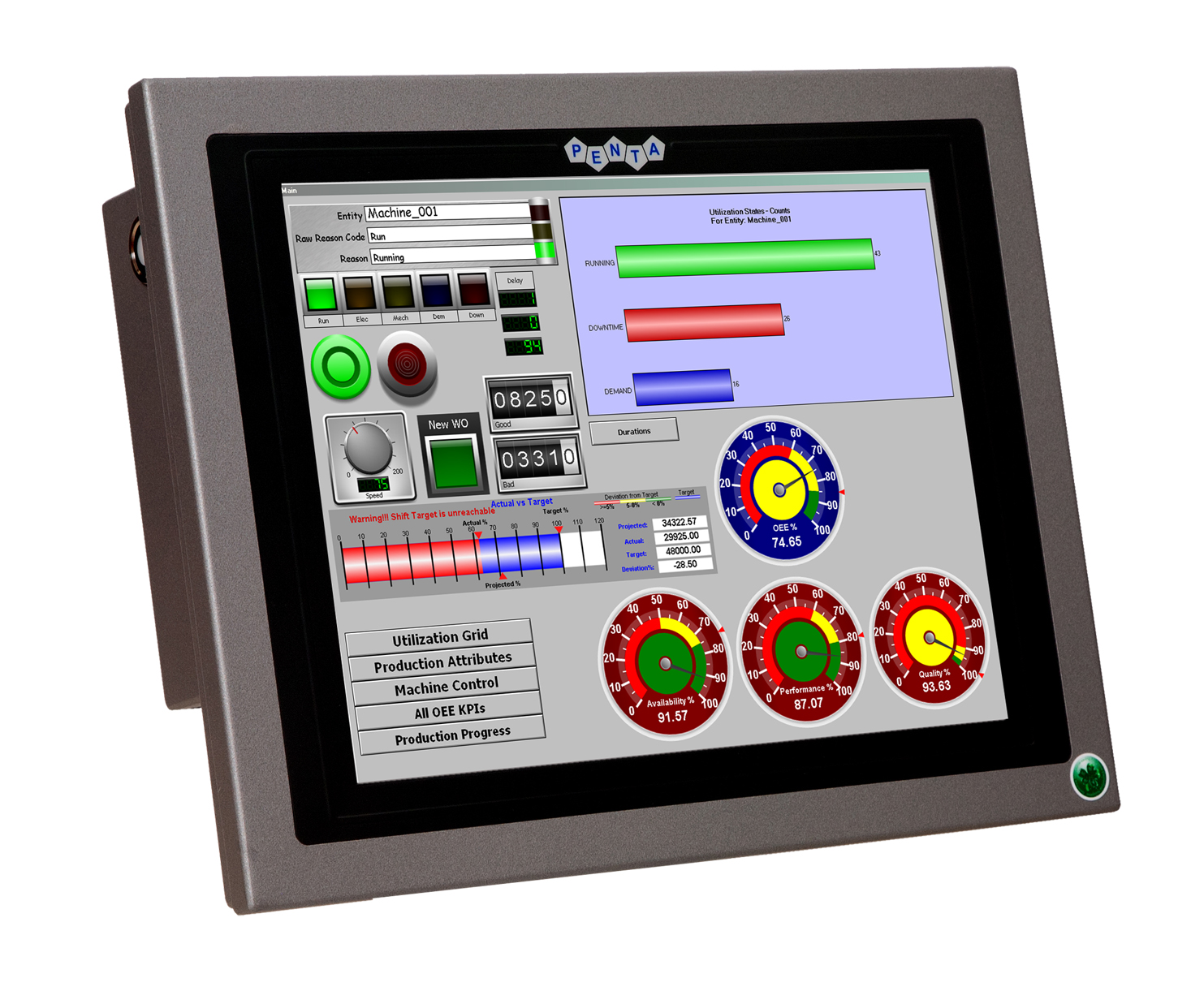

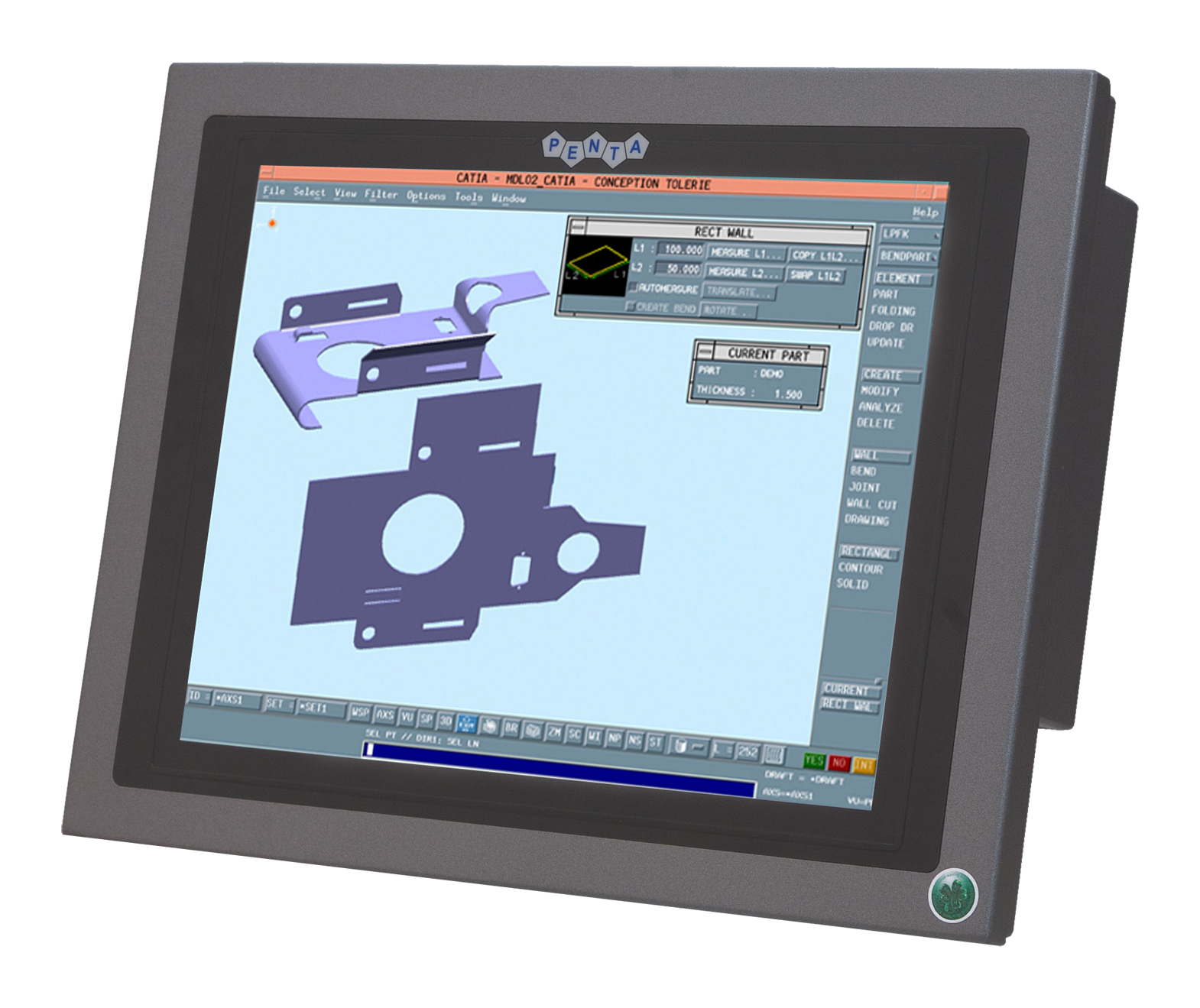

Giant-D15

Reliable, durabel, maintenancefree, fanless

Modular  high-end  Industrial-Computer with complete closed housing (IP65)

Features

  • Modular high-end Industrial-PC with complete closed housing (IP65)
  • Durable and error-free even under critical environmental conditions
  • Fast data input via Touchscreen
  • Various input – and reader devices (Legic , RFID etc.) and Scanner are connectable
  • Wireless-LAN integrable
  • Legic- / Mifare Reader integrable
  • Expandable with two PCIe-Slots (1 x PCIe (1x) ; 1 x Mini PCIe)
  • Passive cooling concept without ventilation-slot and without fan
  • Metal-housing with especially surface, protected all around
  • Industrial suited mounting- and fastening concept with VESA-mounting
  • Cablecover with industrial grade cabel feedthrough (IP65)

Technical Data

Systemdata CPU Intel ® Atom D525 1,8 GHz (Dual-Core)
  Chipset ICH8M
  Cache 1024kB
  RAM Up to 4 GB DDR3
  Video memory Up to 224 MB (DVMT)
  Graphic controller Intel® GMA 3150
  Storage Media Automotive HDD or industrial grade CF-Card
  Display resolution 1024 x 768
  Weight 8,6 kg
Interfaces Touch analog resistive with extended transparency (>80%), surface hard coated against abrasion
  USB 4x USB2.0 and 4 x USB intern
  Power supply 110/240VAC 50/60Hz wide input range or optional 24 VDC
  Ethernet 2 x 1 GB/s
  RS232 5 x serial RS232 (2 intern) ; 1 x RS232/422/485
  Extension-Cards 1 x mini PCIe ; 1 x PCIe (x1) , 1 x PCI
  Parallel Port LPT (intern; optional for extern use)
  Digital I/O 8-bit digital I/O ; 4 bit in- / Output (intern; optional for extern use)
  Audio 1 x Mic-In, 1 x Line out
  VGA 1 x connector for external Monitor
Operating Systems Windows Windows 7; Windows XP; XP embedded
  LINUX LINUX; Embedded Linux (on request; customized)
Environment conditions Operating-Temperature 0°C to + 50°C
  Storage-Temperatur - 10°C to + 60°C
Certificates:   EN 55011 (2007) + A1 (2004) + A2 (2007)
    EN 55022 (2006)
    EN 55024 (1998) + A1 (2001) + A2 (2003)
    EN 61000-6-2 (2005)
    EN 61000-3-2 (2006)
    EN 61000-3-3 (1995) + A1 (2001) + A2 (2005)
    EN 60950-1 (2001)
    RoHS compliant

Download

Productinformation Giant-D15, 17, 19
PIE_Giant_D525.pdf
Filesize: 525 KB | Typ: pdf

Accessories

part-No. Description
ZUB-08-COV-015 Cable cover for Giant IPC
ZUB-08-FMI-001 Wallmount for Giant IPC
ZUB-09-LEG-001 ADMITTO 102 Legic-reader (for virtual COM Port) ; USB
ZUB-09-LEG-002 ADMITTO 301 Mifare-reader (without virtual COM Port) ; USB
ZUB-09-LCS-65L Touchscanner (incl. USB cable and Mount)

other by inquiry

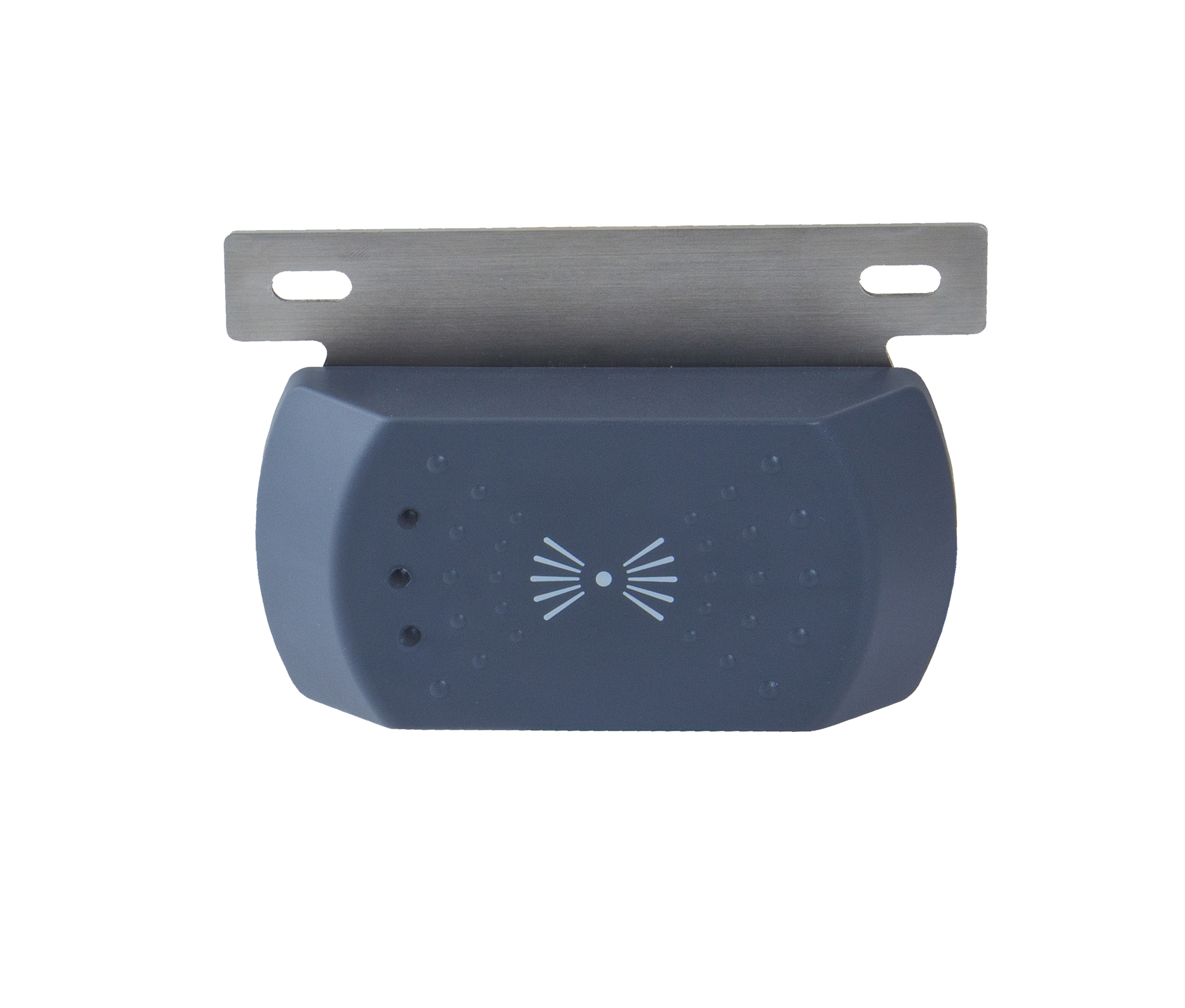

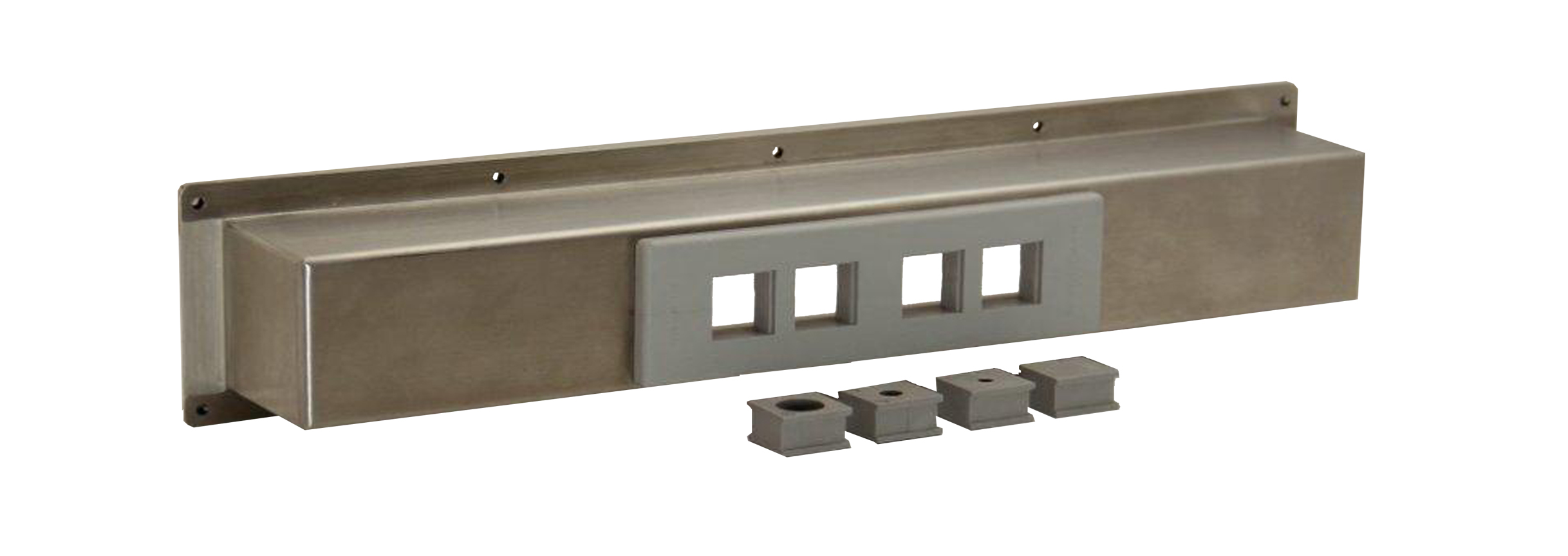

Cablecover and RFID Legic- / Mifare reader
